1.Technical parameters

Box thickness:50-300mm(Customizable)
Box width:200-1000mm
Box length:400-2400mm
Working height :800mm
Total power:11.5kw
Robatech Glue Melting Machine
Speed:0-60m/min

Working height :800mm

2.Main frame :the left and right wall panels are 10mm A3 steel.

3.Instructions for each subsection part

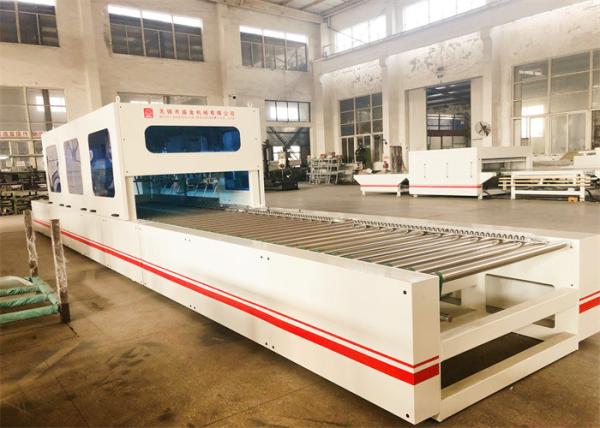

(1)First conveyor Part:designed for conveying the unclosed boxes. The exterior dimension is ,24 stainless steel rollers convey boxes, the boxes can be conveyed sequentially and continuously.

(2)Second Spraying & Packing Part:designed for conveying packing boxes and spraying glue. Spraying and packing the front end, side end, back end. 33 stainless steel rollers convey boxes, the boxes can be conveyed sequentially and continuously. The machine will stop and the front-end and side baffle movements accurate positioning of the boxes. when the shutdown photoelectric head catches the boxes. At the same time, the front and side spraying heads start to move and spray glue on the front and side of the boxes, then when the spray head is finished, pneumatic cylinder drives pressure sticker down, complete the sealing action, then the machine starts and continues to move the boxes forward. When the photoelectric head to capture the package, machine reversal and shutdown, back baffle rises, put the packing boxes in place, at the same time, the spray head of the back end starts to move and sprays glue on the back end of the packing boxes. Then when the spray head is finished, pneumatic cylinder drives pressure sticker down, complete the back-end closure action. Then the machine starts, and continues to forward the finished packing boxes.(Robatech Glue Melting Machine)

(3)Third Outlet Part: designed for conveying the finished packaging boxes, 15 stainless steel rollers convey boxes, the boxes can be conveyed sequentially and continuously.

WUXI SHENGJIN MACHINERY CO., LTD.

Wuxi Sheng Jin Machinery Co., Ltd. was founded in 1992, formerly known as Wuxi Sheng Jin special light industrial machinery factory, in 2010 changed its name to Wuxi Sheng Jin Machinery Co., LTD Specializing in the production of a variety of decorative materials surface treatment equipment, the industry is in a leading position.

Through years of continuous development and innovation , we are now able to supply a complete series of light industry decoration machine , including lamination, hot stamping , printing , coating, etc. The company’s representative products include:RTM1300 PUR Hot-melt Glue Honeycomb Laminating Machine, RTM1300 PUR Hot-melt Adhesive composite Machine, BZ800 Type Automatic Packing Line,KFL 1300×300 floor wax sealing machine ,FMTY300 board lamination & hot stamping machine (with patent issued from State Intellectual Property Office), FMD300/400/600 multifunctional lamination machine ,PRLFMD300 multifunctional hot/cold glue sheet, coil material lamination machine, BTY200 board, angle profile hot stamping machine, YBW series dual-color/tri-color board printing machine, etc. In the year of 2005,Shengjin’s product was awarded with Famous Brand Product of Jiangsu Province.

Taking the principle of “customer first, quality first, service first”, holding the spirits of dynamic innovation and continuous development, we will be actively participating the market competition with new technology, and provide customers with high profitable and best quality products.

We sincerely welcome customers to visit our factory for business cooperation.
