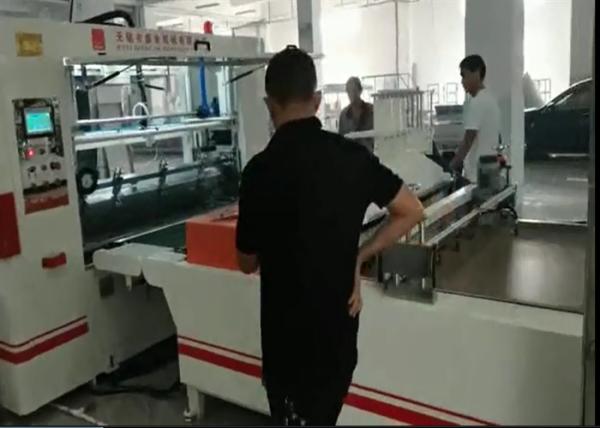

Acrylic HPL PET Sheet / PVC PET Film Automatic Lamination Machine

Process Description

1. Sheet Model

Cveyed toThe bottom plate is manually fed from the1#Dust cleaning conveyor, after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed to the front stalls by the 3# Automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#Press machine,plate output from 5# Out plate conveyor,artificial feeding.

2. Film Continue Model

The bottom plate is manually fed from the 1#Dust cleaning conveyor,after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# Automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.

Technical parameters

1. Board Max effective width:1300mm；

2. Plate effective length:1000-2500mm；

3. Glued Plate effective thickness:2-50mm

4. Composite Plate effective thickness:2-70mm

5. Speed:5-20m/min

6. Voltage:380V/50HZ(Or other industrial demand voltage, but the delivery time needs to be increased by 10 working days)

7. Working height:800mm

8. Total Power:61.2KW

9. Weight:About 7200-7300KG

10. Visual size:12334×3600×2800mm

WUXI SHENGJIN MACHINERY CO., LTD.

Wuxi Sheng Jin Machinery Co., Ltd. was founded in 1992, formerly known as Wuxi Sheng Jin special light industrial machinery factory, in 2010 changed its name to Wuxi Sheng Jin Machinery Co., LTD Specializing in the production of a variety of decorative materials surface treatment equipment, the industry is in a leading position.

Through years of continuous development and innovation , we are now able to supply a complete series of light industry decoration machine , including lamination, hot stamping , printing , coating, etc. The company’s representative products include:RTM1300 PUR Hot-melt Glue Honeycomb Laminating Machine, RTM1300 PUR Hot-melt Adhesive composite Machine, BZ800 Type Automatic Packing Line,KFL 1300×300 floor wax sealing machine ,FMTY300 board lamination & hot stamping machine (with patent issued from State Intellectual Property Office), FMD300/400/600 multifunctional lamination machine ,PRLFMD300 multifunctional hot/cold glue sheet, coil material lamination machine, BTY200 board, angle profile hot stamping machine, YBW series dual-color/tri-color board printing machine, etc. In the year of 2005,Shengjin’s product was awarded with Famous Brand Product of Jiangsu Province.

Taking the principle of “customer first, quality first, service first”, holding the spirits of dynamic innovation and continuous development, we will be actively participating the market competition with new technology, and provide customers with high profitable and best quality products.

We sincerely welcome customers to visit our factory for business cooperation.
