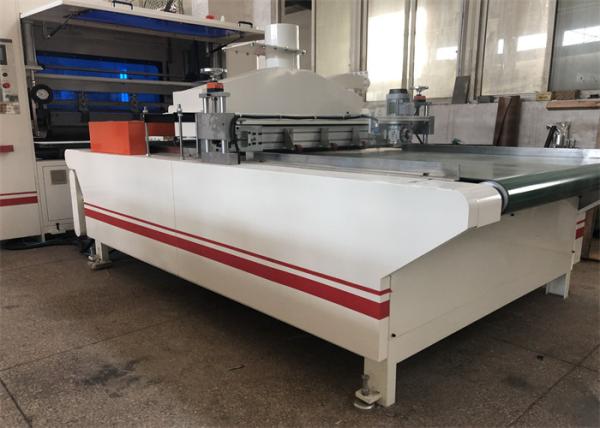

PVC Film Coating Laminating Machine Without Auto Cutter

Time limit for delivery:After received deposit 20 working days(Non standard voltage 30 working days)

Payment method:30% deposit, full payment before departure

Working Principle

1. Sheet model:Laminate HPL/Acrylic/PET sheet

2. Film continue mode:Laminate PVC/PET film,

When bottom plate is manually feded from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming Manual cut-off.

Technical parameters

1. Plate effective width:400-2600mm

2. Plate effextive length:1000-2500mm

3. Glued Plate effective thickness:2—50mm

4. Composite Plate effective thickness:5—70mm

5. Voltage:380V 50HZ

6. Working height:800mm

7. Warranty:1 year

8. Speed:5-20m/min

WUXI SHENGJIN MACHINERY CO., LTD.

Wuxi Sheng Jin Machinery Co., Ltd. was founded in 1992, formerly known as Wuxi Sheng Jin special light industrial machinery factory, in 2010 changed its name to Wuxi Sheng Jin Machinery Co., LTD Specializing in the production of a variety of decorative materials surface treatment equipment, the industry is in a leading position.

Through years of continuous development and innovation , we are now able to supply a complete series of light industry decoration machine , including lamination, hot stamping , printing , coating, etc. The company’s representative products include:RTM1300 PUR Hot-melt Glue Honeycomb Laminating Machine, RTM1300 PUR Hot-melt Adhesive composite Machine, BZ800 Type Automatic Packing Line,KFL 1300×300 floor wax sealing machine ,FMTY300 board lamination & hot stamping machine (with patent issued from State Intellectual Property Office), FMD300/400/600 multifunctional lamination machine ,PRLFMD300 multifunctional hot/cold glue sheet, coil material lamination machine, BTY200 board, angle profile hot stamping machine, YBW series dual-color/tri-color board printing machine, etc. In the year of 2005,Shengjin’s product was awarded with Famous Brand Product of Jiangsu Province.

Taking the principle of “customer first, quality first, service first”, holding the spirits of dynamic innovation and continuous development, we will be actively participating the market competition with new technology, and provide customers with high profitable and best quality products.

We sincerely welcome customers to visit our factory for business cooperation.
